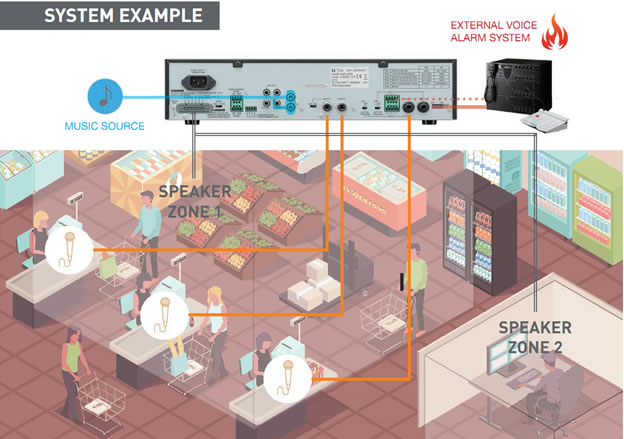

A-3500D - ЦИФРОВОЙ МИКШЕРНЫЙ УСИЛИТЕЛЬ

A-3506D

A-3512D

A-3524D

A-3548D

Источник питания

100 to 240 V AC, 50/60 Hz

Номинальная мощность

60Вт

120Вт

240Вт

480Вт

Потребляемый ток

96 W (rated output),
40 W (based on EN62368)

171 W (rated output),
48 W (based on EN62368)

314 W (rated output),
70 W (based on EN62368)

601 W (rated output),
113 W (based on EN62368)

Потребляемый Ток

200 mA or less (when power switch is OFF)

Частотная Характеристика

50 Hz to 20 kHz ±3 dB (1/8 rated output)

Искажение

1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))

Отношение сигнал / шум

88 dB or more (Master volume: min)
76 dB or more (Master volume: max)
55 dB or more (INPUT 1 to 4)
72 dB or more (INPUT 5)
(A-weighted)

Аудио вход

  INPUT 1, 2

-60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced,
removable terminal block (3.81 mm, 5 pins)/ Ø6.3 mm phone jack (2P)
Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).

  INPUT 3

-60 dB*, 600 Ω, electronically-balanced, Ø6.3 mm phone jack (2P)

  INPUT 4

-60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, Ø6.3 mm phone jack (2P)

INPUT 5

-20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2

Вход Усилителя Мощности

0 dB*, 600Ω, unbalanced, RCA pin jack

Аудио выход

  SPEAKER OUT

Low impedance
(8 to 16 Ω)/
High impedance
(DIRECT, ZONE 1/ZONE 2?
100 V/total 170 Ω)
(ZONE 1/ZONE 2 is selectable,
Max. 60 W per output)

Low impedance
(4 to 16 Ω)/
High impedance
(DIRECT, ZONE 1/ZONE 2?
100 V/total 83 Ω)
(ZONE 1/ZONE 2 is selectabl
Max. 120 W per output)

Low impedance
(4 to 16 Ω)/
High impedance
(DIRECT, ZONE 1/ZONE 2?
100 V/total 42 Ω)
(ZONE 1/ZONE 2 is selectable,
Max. 240 W per output)

Low impedance
(4 to 16 Ω)/
High impedance
(DIRECT, ZONE 1/ZONE 2?
100 V/total 21 Ω)
(ZONE 1/ZONE 2 is selectable,
Max. 480 W per output)

Выход для записи

0 dB *, 600 Ω, unbalanced, RCA pin jack

ЛИНИЯ 1, 2

0 dB *, 600 Ω, unbalanced, RCA pin jack, (Interlock with zone selection is possible.)

Управляющий Вход

CONTROL IN

2 channels, no-voltage make contact input, open voltage: 35 V DC or less,
short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins)

ZONE CONTROL IN

No-voltage make contact input, open voltage ? 35 V DC or less,
short-circuit current?10 mA or less, removable terminal block (3.81 mm, 4 pins)

Управляющий Выход

ДИСТАНЦИОННОЕ ОТКЛЮЧЕНИЕ ПИТАНИЯ

Open collector output, withstand voltage? 30 V DC or less,
control current? 25 mA or less, removable terminal block (3.50 mm, 4 pins)

АВАРИЙНЫЙ ВЫХОД

Open collector output, withstand voltage? 30 V DC or less,
control current? 25 mA or less, removable terminal block (3.50 mm, 4 pins)

ZONE CONTROL OUT

Open collector output (polarized), withstand voltage? 30 V DC or less,
control current? 25 mA or less, removable terminal block (3.81 mm, 4 pins)

Indicators

5-point LED level meter, Power indicator, Priority broadcast indicator, Emergency broadcast indicator,
Thermal protection indicator, Over-current protection indicator, and Zone indicator (1, 2)

размеры

420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33"

Вес

4.9 kg (10.08 lb)

5.1 kg (11.24 lb)

Дополнительное оборудование

Кронштейн для монтажа в стойку: MB-25B, Перфорированная панель: PF-013B
